Why Valve Selection Is the Most Expensive Mistake on an African Piping Project
A wrong pipe or flange order is a delay. A wrong valve is often a shutdown, a safety incident, or a failed project inspection — because the valve is the one component expected to perform under pressure, on demand, for the life of the plant. Across oil & gas, water treatment, desalination, mining and power projects in Nigeria, South Africa, Kenya, Egypt and Algeria, the same sourcing mistake repeats: buyers compare valves on price per piece without first locking down the service conditions the valve actually has to survive.
This guide covers how to specify, compare and source ball, gate, globe and butterfly valves for African industrial projects — and where importing from an Indian manufacturer like Kemlite fits into that sourcing decision.
What Is an Industrial Valve, and Why Does Type Matter?
An industrial valve controls, isolates or regulates the flow of a fluid or gas through a piping system. The four types that cover the overwhelming majority of African industrial and infrastructure projects are:
- Ball valves — quarter-turn, tight shutoff, used for isolation on oil, gas, water and process lines
- Gate valves — full-bore isolation for on/off service, common on pipelines and water distribution
- Globe valves — designed for throttling and flow regulation, not just on/off
- Butterfly valves — compact, lightweight, cost-effective for large-diameter water and low-pressure service
Choosing the wrong type for the application is as common a mistake as choosing the wrong material — a globe valve used purely for isolation, or a gate valve used for frequent throttling, will fail prematurely regardless of how well it was manufactured.
Step 1: Define the Service Before You Request a Quote
Before any valve quote is meaningful, define:
- Fluid or gas being handled — crude, refined product, natural gas, produced water, potable water, seawater, slurry
- Pressure class — ASME Class 150 through 2500, or API-rated for oil & gas service
- Temperature range — both operating and design extremes
- Line size — the nominal bore the valve must match
- Service type — isolation (on/off) vs. throttling (regulation)
- End connection — flanged, threaded, or buttweld, matched to the rest of the line
For African mining and water infrastructure projects specifically, slurry content, sand, and intermittent dry-running are common and need to be flagged to the supplier up front — a standard trim rated for clean service wears out fast in an abrasive line.
API 6D vs ASME B16.34: Which Standard Applies?
This is the single most common point of confusion in African valve procurement.
- API 6D governs pipeline valves specifically — ball, gate, check and plug valves used in oil and gas pipeline service, with specific requirements for fire-safe design, fugitive emissions and pipeline-specific testing.
- ASME B16.34 governs valves for general pressure piping across a much wider range of industries, including refineries, process plants, and water infrastructure, and is organized by pressure-temperature rating rather than pipeline-specific service.
A valve manufactured and tested to API 6D will typically also meet or exceed ASME B16.34’s pressure-temperature requirements, but the reverse is not guaranteed — if your project specification calls out API 6D (common on ADNOC, NNPC, and major African pipeline operator specs), ask explicitly whether the quoted valve is API 6D certified, not just “ASME compliant.”
Material Selection for African Operating Environments
- Carbon steel — standard for most onshore oil, gas and water transmission service where corrosion risk is moderate

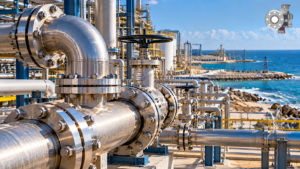

- Stainless steel (304/316) — for corrosive media, coastal installations, and water treatment plants exposed to chlorides — relevant for West and East African coastal projects in Lagos, Mombasa and Durban
- Duplex and super duplex (see our duplex vs 316L comparison) — for high-chloride seawater injection, desalination, and offshore service where standard stainless corrodes too quickly
- Nickel alloys (Monel, Inconel, Hastelloy) — reserved for the most aggressive chemical processing conditions, rarely needed outside specialty petrochemical lines
Choosing stainless or duplex trim internals even when the body is carbon steel is a common and cost-effective way to extend valve life in corrosive service without paying for a fully exotic-alloy valve body.
Common Mistakes African Buyers Make When Sourcing Valves
- Quoting by nominal size and pressure class alone, without specifying trim material — the trim (seat, stem, ball/disc) usually fails before the body does
- Assuming “stainless steel” means the same corrosion resistance everywhere — 304 and 316 behave very differently in chloride-heavy coastal and seawater service
- Ignoring actuation requirements early — manual, gear-operated, or actuated valves have different lead times and footprints; specifying this late causes redesign
- Not confirming fire-safe certification for oil & gas isolation valves where it’s required by the project spec
- Treating all “API 6D” claims as verified — ask for the actual test certificate, not just a datasheet claim
- Underestimating spares and maintenance access — valves in remote African sites (upcountry Nigeria, inland Kenya, desert Algeria) need realistic spares planning, since a failed valve far from a service center can shut down a line for weeks
Why Buyers in Africa Are Increasingly Sourcing Valves from India
European valve manufacturers remain the default for many African EPC contractors, but Indian manufacturers — including Kemlite — are increasingly competitive on the exact criteria that matter for African projects:
- Pricing that reflects a lower manufacturing cost base, without compromising on ASME/API-compliant materials and testing
- Faster response on custom and non-catalog sizes, since production scheduling isn’t queued behind large standardized batch runs
- A full component range in one order — valves, flanges, buttweld fittings, fasteners, olets and dielectric unions — so a single African buyer can consolidate what would otherwise be several separate supplier relationships
- ISO 9001:2008 certified manufacturing with EN10204 3.1 material certification issued as standard, matched to stainless steel, duplex, super duplex and nickel alloy material options
- Shipping lanes into major African ports — Mumbai/Nhava Sheva to Durban, Lagos (Apapa/Tin Can Island), Mombasa, and Alexandria are all established container routes
Valve Specification Checklist for Your RFQ
- Fluid/gas service and concentration of any abrasive or corrosive content
- Pressure class and design temperature range
- Line size and end connection type
- Valve type (ball, gate, globe, butterfly) and service (isolation vs. throttling)
- Body and trim material
- Standard required (API 6D, ASME B16.34, or project-specific spec)
- Actuation type (manual, gear, pneumatic, electric)
- Fire-safe certification requirement, if applicable
- Testing and inspection requirements (hydrostatic, third-party witness)
- Destination port and required export documentation
A supplier who can walk through every line of this checklist with you before quoting — not after — is the one who actually controls their own manufacturing, rather than reselling someone else’s valves at a markup.
Get a Valve Quote for Your African Project
If you’re specifying valves for an oil & gas, water infrastructure, desalination or mining project anywhere in Africa, contact our export team with your service conditions, pressure class, and destination port. We’ll respond with pricing, material recommendations, and a realistic lead time within 24 hours.
Frequently Asked Questions
What’s the difference between API 6D and ASME B16.34 valves?
API 6D is specific to pipeline valves in oil and gas service, with pipeline-specific fire-safe and testing requirements. ASME B16.34 covers pressure-rated valves across a broader range of general industrial piping applications. Check your project spec to confirm which is required.
Can Indian valve manufacturers meet API 6D certification requirements for African oil and gas projects?
Yes — reputable Indian manufacturers produce and test valves to API 6D where required. Always request the actual test certificate for the specific valve being quoted, not a general datasheet claim.
What valve material is best for coastal or seawater service in Africa?
Standard 316 stainless steel handles moderate chloride exposure, but for seawater injection, desalination, or offshore service, duplex or super duplex trim is usually specified for longer service life. See our duplex vs. 316L comparison for more detail.
How long does it take to import valves from India to Africa?
Production lead time depends on size, material and whether the valve is a catalog item or custom-specified; sea freight to major African ports (Durban, Lagos, Mombasa) typically takes a few weeks once cargo is loaded. Always confirm current production lead time at the time of quote.
Do I need third-party inspection for valves on an African oil & gas project?
Many operator specifications require third-party witness testing for critical isolation valves. Confirm this requirement and the inspection agency before production begins, not after the valve is manufactured.
